Product Details:
|
| Vehicle Type: | Used Truck-mounted Crane | Year: | 2013 |
|---|---|---|---|
| Max. Power: | 180/2200Kw/rpm | Max. Torque: | 1025/1400N.m/rpm |
| Bore/Stroke: | 114×135mm | Overall Dimension: | 11980×2500×3750mm |
| High Light: | used truck mounted crane,crain used trucks |
||

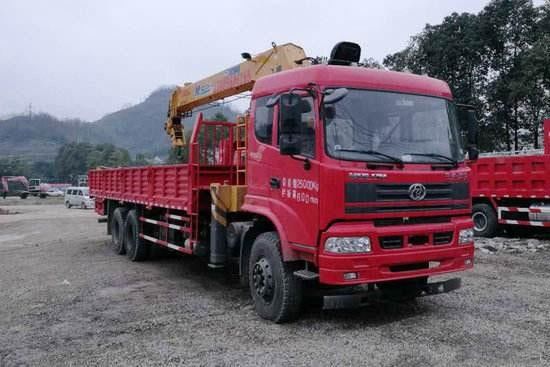

6X4 180/2200 Kw Max Power Dongfeng Used Crane Trucks Truck Mounted Hydraulic Cranes
This Truck-mounted crane truck jib system adopts embedded block, plug-in boom head and international advanced U section jib, which has excellent lifting performance and safe and reliable lifting work.
The unique stretch and retract technique avoids the bend of the core pipe and cylinder and the break of the boom caused by misoperation, improving the safety of the operations.Adopt the new hydraulic motor with big torque starting point, making the secondary lifting safer.
| Dongfeng truck-mounted Crane | |||
| Specification | |||
| Truck | Drive mode | 6×4 | |
| Chassis | DFL1250A9 | ||
| Engine | Model | Cummins C245 20 | |
| Type | 6-cylinder in line, turbocharging and inter cooling, mechanical injection pump, bulit-in EGR | ||
| Max. power(Kw/rpm) | 180/2200 | ||
| Max. torque(N.m/rpm) | 1025/1400 | ||
| Bore/Stroke(mm) | 114×135 | ||
| Displacement(ml) | 8300 | ||
| Type of fuel | Diesel | ||
| Compression ratio | (18±0.5):1 | ||
| No. of valves | 2 | ||
| Dimensions | Overall dimension (mm) | 11980×2500×3750 | |
| Wheel base (mm) | 5350+1300 | ||
| Front/Rear tread(mm) | 1986/1860 | ||
| Mass | Payload (Kg) | 9815 | |
| Curb weight(Kg) | 14990 | ||
| G.V.W (Kg) | 25000 | ||
| Crane | Crane Weight (Kg) | 3800 | |
| Max. Lifting Capacity (Kg) | 10000 | ||
| Max. Lifting Moment (T.M) | 25 | ||
| Lifting Capacity/Working Radius (Kg/m) | 10000/2.5 | ||
| 5500/4.5 | |||
| 2300/9.0 | |||
| 1500/12.0 | |||
| Max. Working Radius (m) | 12 | ||
| Max. Working Height (m) | 13.8 | ||
We have a wide range of quality used trucks in our stock. One of the benefits of purchasing an used crane truck from us is the vehicle support provided to you in the event of any issue.
All used crane trucks for sale undergo rigid testing for any problems and comprehensive repairs are undertaken before the truck is listed for sale and we use only genuine original factory spare parts.
Regular Trade Terms:
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Payment terms: T/T before shipment.
Delivery time: normally 7-15 working days after full payment received.
