Product Details:
|
| Vehicle Type: | Used Dump Truck | Year: | 2015.12 |
|---|---|---|---|
| Overall Dimension: | 8245x2550x3450mm | Inner Dimension: | 5400x2300x1500 18m3 |
| Wheelbase: | 3625+1350mm | Horsepower: | 375hp |
| High Light: | second hand dumper truck,used light duty dump trucks |
||

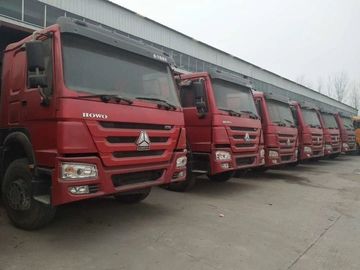

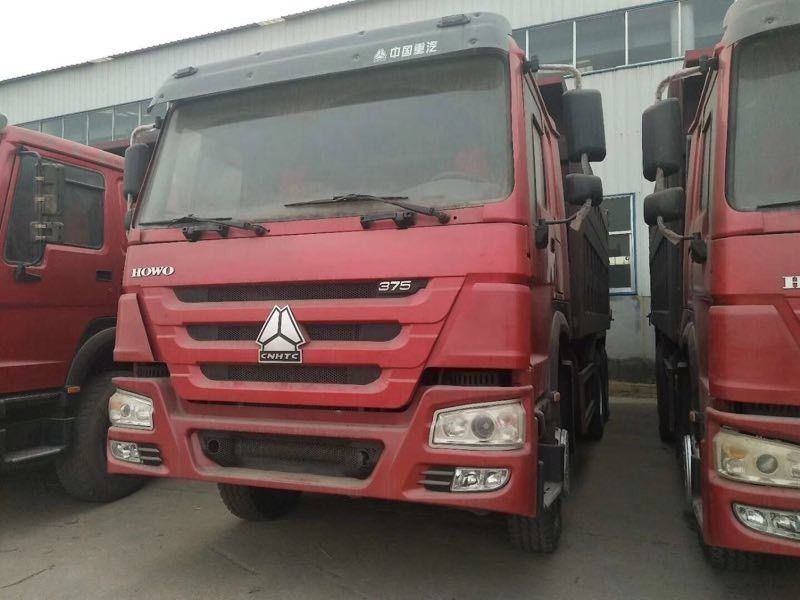

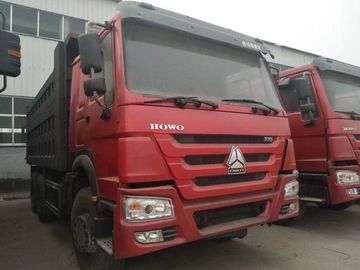

25 Tons 375HP 6X4 SINOTRUCK HOWO Heavy Duty Used Dump Truck Used Tipper Truck
SPECIFICATION
| Truck Model | ZZ3257N3647 | |||
| Truck Brand | SINOTRUK –HOWO | |||
| Driving Type | LHD | |||
| Dimension(Lx W xH)(unloaded)(mm) | 8245x2550x3450 | |||
| Cargo body size (L*W*H) | 5400x2300x1500 18m3 | |||
| Cargo body thickness(mm) | bottom:8mm, side:6mm | |||
| Lift type of Carriage | Ventral lifting | |||
| Approaching angle/Departure angle(°) | 19/23 | |||
| Overhang(front/rear) (mm) | 1500/1870 | |||
| Wheel base (mm) | 3625+1350 | |||
| Max speed(km/h) | 75 | |||
| Curb weight(kg) | 12600 | |||
| Loading Weight(kg) | 25000 | |||
| Fuel tanker capacity(L) | 300L with locking fuel cap | |||
| Clutch | Single-plate dry clutch Φ430mm | |||
|
Engine Model (Steyr technology, made in China) |
Model | WD615.95E,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and inter-cooling | ||
| Horse Power | 375HP/276kw.2000r/min, 9.726L | |||
| Emission | EURO II | |||
| Fuel Type | Diesel | |||
| Transmission | Model | HW19710,10 forwards and 2 reverse | ||
| Brake system | Service brake | Dual circuit compressed air brake | ||
| Parking brake | spring energy, compressed air operating on rear wheels | |||
| Auxiliary brake | Engine exhaust brake | |||
| Steering system | Model |
hydraulic steering with power assistance Ratio:22.2-26.2 |
||
| Front axle |
HF9 , Steering with double T-cross section beam Loading capacity:9000KG |
|||
| Rear axle |
HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels Loading capacity: 16000kg |
|||
| Color | Optional | |||
| Tire |
12.00R20 Steel tires 10+1 spare |
|||
| Electrical system | Operating voltage | 24V,negative grounded | ||
| Starter | 24V,7.35KW | |||
| Alternator | 28V,1500W | |||
| Batteries | 2*12V.165Ah | |||
| Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light. | ||||
| Cab | HOWO76 cab, (single sleeper, with air-condition), all-steel forward control,70ºhydraulically tiltable to the front, 2- arm windscreen wiper system with 3 speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | |||
| Instrument Panel | Active check central control with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators of compressed air pressure, coolant temperature, engine oil pressure and battery charging | |||
We have a wide range of quality used trucks in our stock. One of the benefits of purchasing an used dump truck from us is the vehicle support provided to you in the event of any issue.
All used dump trucks for sale undergo rigid testing for any problems and comprehensive repairs are undertaken before the truck is listed for sale and we use only genuine original factory spare parts.
Regular Trade Terms:
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Payment terms: T/T before shipment.
Delivery time: normally 7-15 working days after full payment received.
Used Vehicles we can provide
Used Buses like yutong bus,coaster bus, coach bus,tour bus,mini bus,school bus etc.
Used trucks like dump trucks, sinotruck, cargo truck, tank truck, tractor trucks, crane truck, concrete mixer trucks and other special purpose trucks, etc.
also we have sources of used SUVs and pickup cars and Sourcing used vehicles based on your demands service is available.
