Product Details:
|
| Vehicle Type: | Used Concrete Mixter Truck | Year: | 2012 |
|---|---|---|---|
| Cubic: | 10m³ | Wheel Base: | 3825+1350mm |
| Max Speed: | 77km/h | Overall Dimension: | 11005x2496x3900mm |
| High Light: | second hand tanker truck,second hand concrete mixer trucks |
||

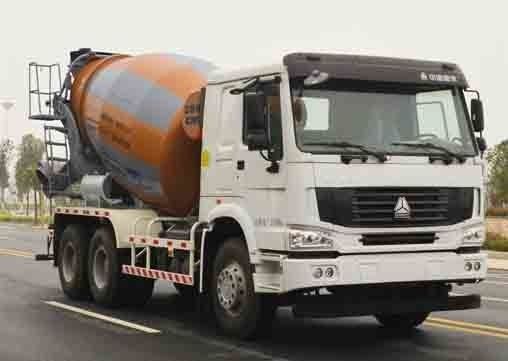

10 Cubic 340hp 6X4 Drive 10 Tires HOWO Chassis ZOOMLION Used Concrete Mixer Truck
| Vehicle parameters | |||
| Vehicle Model | ZLJ5251GJBH | Vehicle Brand | ZOOMLION |
| Overall dimensions | 11005x2496x3900mm | Curb weight | 15000kg |
| Loading capacity | 10m3 | ||
| Chassis parameters | |||||
| Chassis model | ZZ1257N3847D1 | Chassis brand | HOWO | ||
| Overall dimensions | 11005x2496x3900mm | Wheel base | 3825+1350mm | ||
| Front/rear wheel track | 2022/1830/1830mm | Front/rear suspension | 1525/2485mm | ||
| Approach/departure angle | 16/16° | Maximum speed | 77km/h | ||
| Chassis Manufacturer | SINOTRUK | ||||
| Cab | Configuration | F3000 flat roof heating cab, main seat hydraulic seat, four-point hydraulic suspension cab, electronically controlled automatic constant temperature air conditioning, single-bed, 14 rear-view mirrors, manual window-shaking machine, manual overturn,F3000 cooling system, domestic left steering machine,180Ah battery, SHACMAN logo, all Russian logo, remote throttle control | |||
| Color | White,other color is optional | ||||
| Engine | Model | D10.34-40 | |||
| Emission | Euro iii | ||||
| Type | 4 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling, exhaust valve brake, direct injection diesel engine | ||||
| Rated power | 340hp,rated power speed 1900rpm | ||||
| Displacement | 9726ml | ||||
| Max.torque | 1550N.m | ||||
| Bore x stroke | 126x130mm | ||||
| Manufacturer | Weichai Power Co., Ltd. | ||||
| Tire | Size | 12.00R20 steel wire tire | |||
| Number | 10 nos | ||||
| Clutch | Eaton φ430 diaphragm clutch | ||||
| Fuel tank | 380L aluminium alloy | ||||
| Front axle | MAN, 7.5 tons disc type | ||||
| Rear axle | MAN,16 tons casting bridge,main reduction ratio 5.262 | ||||
| Drive form | 6X4 | ||||
| Rated voltage | 24V,DC | ||||
| Transmissions | FAST 12JSD160TA,12 speed forward 2 reverse. | ||||
| Steering device | Power assisted steering,steering machine | ||||
| Steering wheel | Left hand drive | ||||
| Selective configuration | |||||
| If there is a slight change in the chassis parameters above,please take the actual product as the standard | |||||
| Concrete mixer truck structure parameters | ||||
| Mixing capacity(m³) | 10 | Color and Logo | Optional | |
| Feeding speed (m³/min) | ≥8 | Discharge speed(m³/min) | ≥5 | |
| Discharge residual rate | ≤0.5% | Slump scope(mm) | 50-210 | |
| Water tank capacity(L) | 450L | Water pressure(Mpa) | 0.35-0.38 | |
| Tank material | 5mm alloy steel | Tank front head | 8mm alloy steel | |
| Reducer | ZF3301 | Hydraulic motor | Germany REXROTH | |
| Hydraulic pump | Germany REXROTH | Radiator | KAIPENG | |
| Standard configuration | chassis,sub frame,mixer tank,reducer, hydraulic pump,hydraulic motor, radiator,water tank,cleaning hose,feed port, discharge port,climbing ladder,air pressure water supply device. | |||
| 8m3 | Germany ZF3301 reducer,Germany REXROTH hydraulic pump,Germany REXROTH hydraulic motor,KAIPENG radiator,mixer tank(main tank 5mm alloy steel wear resistant material,front tank head 8mm alloy steel wear resistant material) | |||
| Selective configuration |
Emergency high pressure oil hose(4 pieces),12m emergency oil hose(Italy),water cannon,large tool box,electric water supplying system. |
|||
We have a wide range of quality used trucks in our stock. One of the benefits of purchasing an used concrete mixer truck from us is the vehicle support provided to you in the event of any issue.
All used concrete mixer trucks for sale undergo rigid testing for any problems and comprehensive repairs are undertaken before the truck is listed for sale and we use only genuine original factory spare parts.
Regular Trade Terms:
Packing : Nude packing.
Shipment: By RO-RO or Bulk vessel .
Payment terms: T/T before shipment.
Delivery time: normally 7 working days after full payment received.
Used Vehicles we can provide
Used Buses like yutong bus,coaster bus, coach bus,tour bus,mini bus,school bus etc.
Used trucks like dump trucks, sinotruck, cargo truck, tractor trucks, crane truck, concrete mixer trucks and other special purpose trucks, etc.
Used SUVs and used pickup cars, we can also source used vehicles based on your demands.
